HANDLING ATTACHMENTS
Loader Grapples
Loader grapple attachments combine lower tines with an upper curved grab. The photographs show black and yellow configurations with different visible frames and tine layouts. Match the attachment structure to the carrier and material.
- Attachment type
- Open-tine loader grapple
- Shown configurations
- Black and yellow grapple frames
CONFIGURATIONS & VIEWS
Yellow grapple configurations.

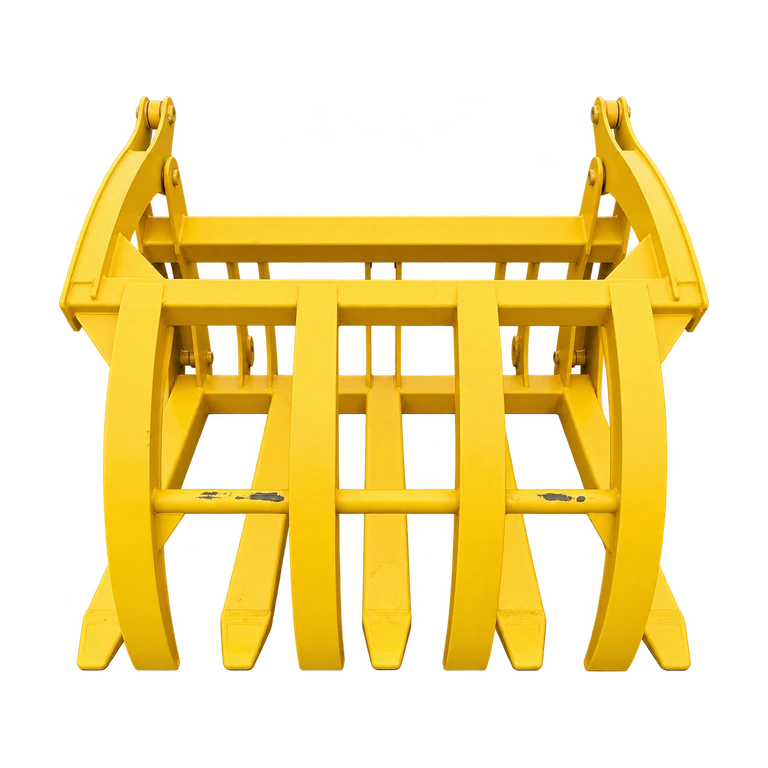

Yellow grapple — front view
Open frame, curved upper grab and lower tines.
View full-size photo ↗

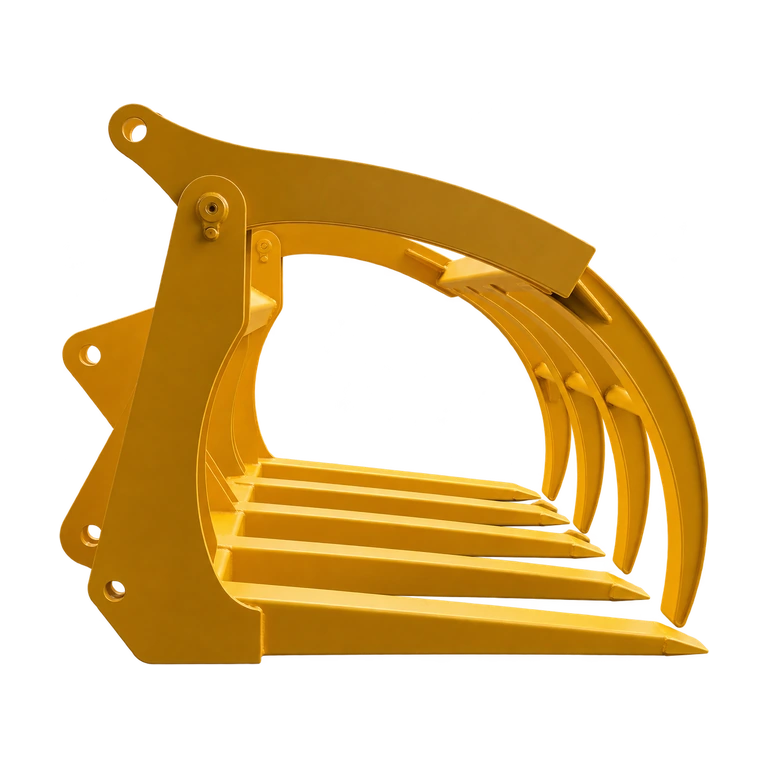

Yellow grapple — side view
Side profile of the grab ribs, lower tines and mounting plates.
View full-size photo ↗SELECTION REQUIREMENTS
Match the equipment to your application.
Send the material to be handled, desired width and opening, mounting pin dimensions or coupling drawing, and available hydraulics.
Quote all linear dimensions in mm. Include a mounting drawing or sample dimensions with your enquiry.
