Standard Tiller Gearboxes

TRANSMISSION COMPONENTS

Standard Tiller Gearboxes

The M8 standard housing assembly is shown. The M9 medium-height configuration is included below as a related option, with its own mounting drawing.

Shown model: M8 standard
Related configuration: M9 medium-height
Application: Rotary tiller drivetrain

Enquire about this product ↗

SERIES CONFIGURATIONS

Compare the available configurations.

Browse 7 product configurations. Select an image, name or More to view the model and matching details.

Find a model

GB02-01

M8 Standard Housing

Standard rotary tiller configuration

More ↗

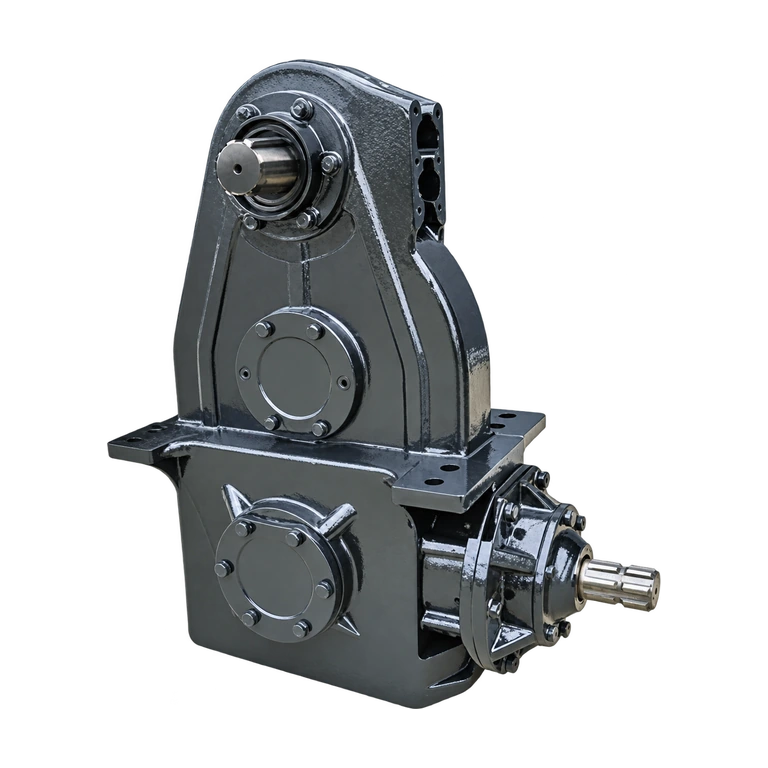

GB02-02

M9 Medium-height Housing

Medium-height rotary tiller configuration

More ↗

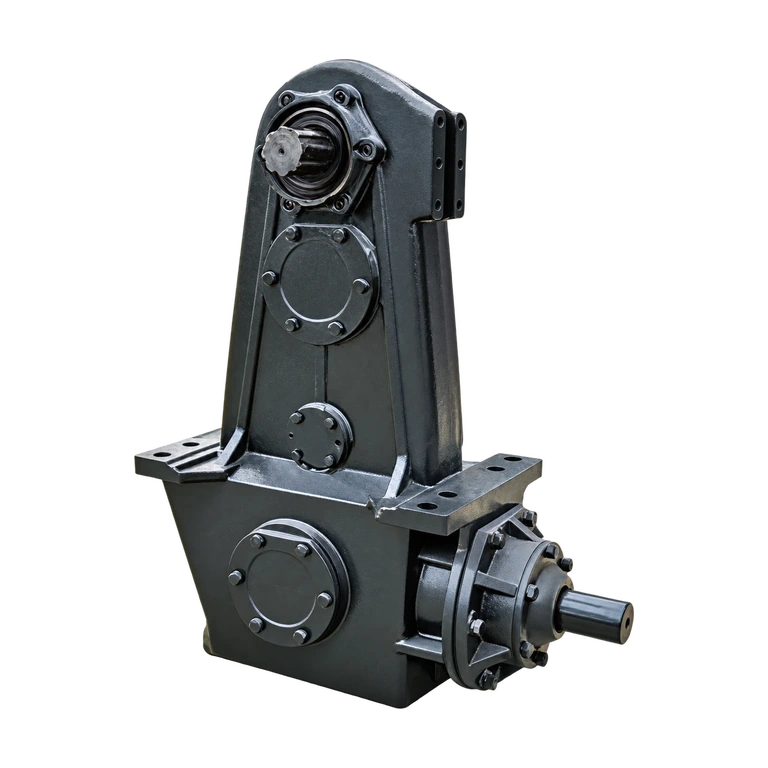

GB02-03

M8 Alternative Housing

Alternative housing and mounting layout

More ↗

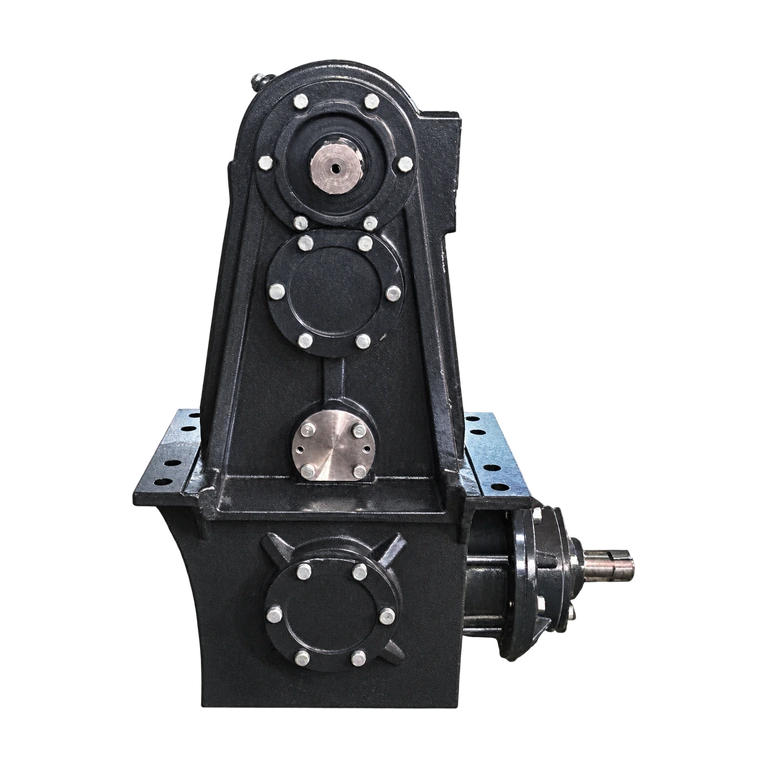

GB02-04

Eight-hole High Housing

Eight-hole mounting configuration

More ↗

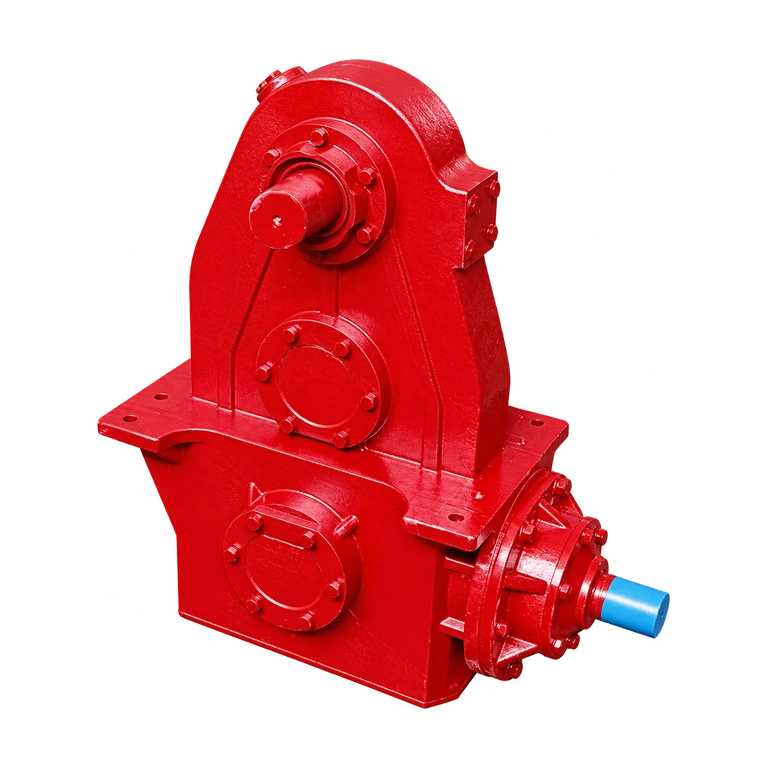

GB02-05

Medium-height Housing

Tooth pair: 13/24

More ↗

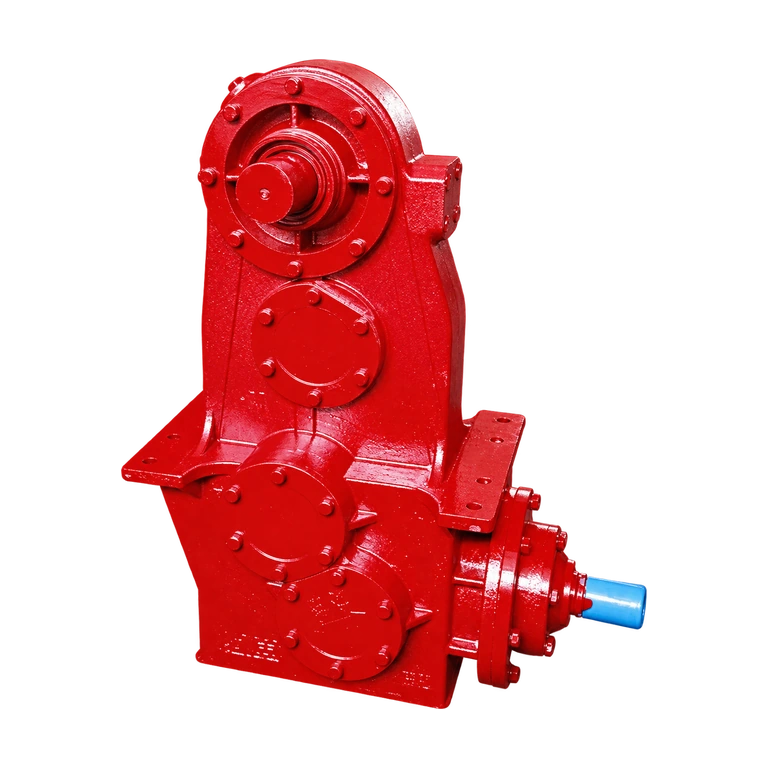

GB02-06

High Tiller Housing

Tooth pair: 13/24

More ↗

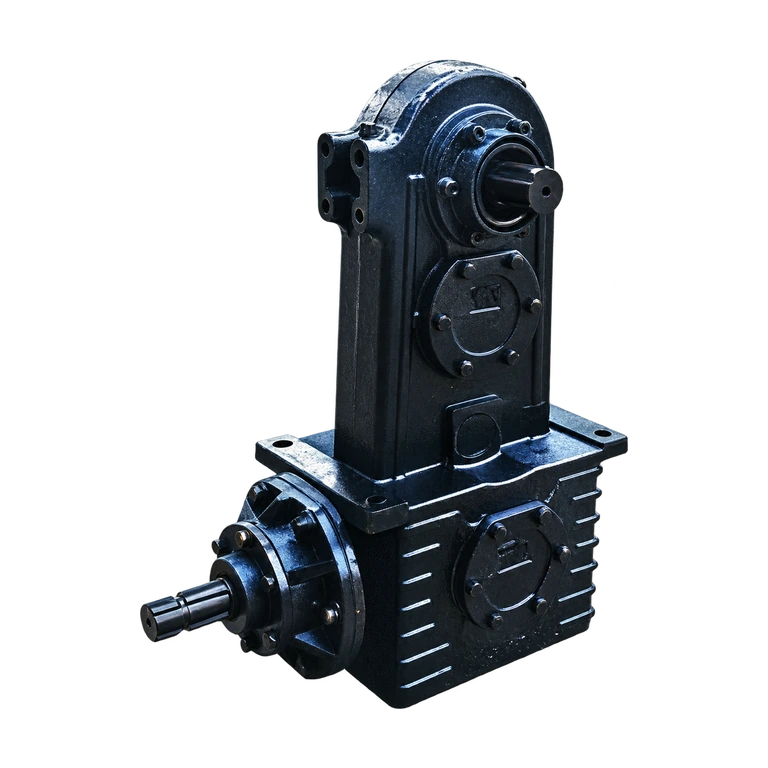

GB02-07

150 Housing

150 housing assembly

More ↗

SELECTION SUMMARY

Configuration selection.

Model / configuration	Product / layout	Tooth combinations / selection	Enquiry
M8	Standard housing	13/28 · 13/32 · 14/25 · 14/26 · 15/22 · 15/23 · 15/24 · 15/25	Enquire ↗
M9	Medium-height housing	13/28 · 13/32 · 14/24 · 14/25 · 14/26 · 14/27 · 15/22 · 15/23 · 15/24 · 15/25	Enquire ↗

Match the model, shaft arrangement, mounting pattern and gear configuration to your machine.

DIMENSION DRAWINGS

Mounting dimensions mm

All linear dimensions are in millimetres (mm). Ø indicates diameter; angles are in degrees (°). Thread designations, tooth counts and spline counts are not lengths.

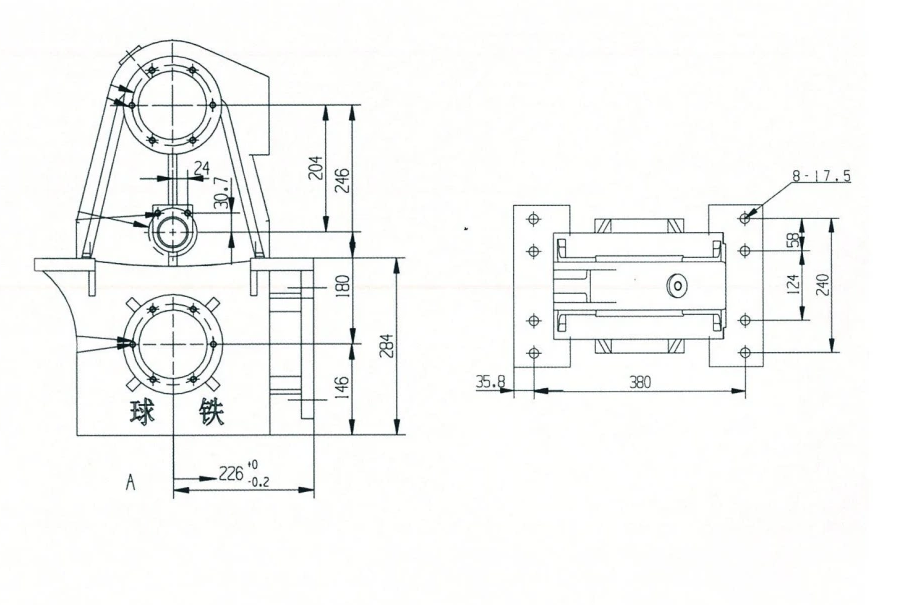

M8 standard mounting dimension drawing; linear dimensions in mm — M8 standard
Linear dimensions: mmOpen full-size drawing ↗

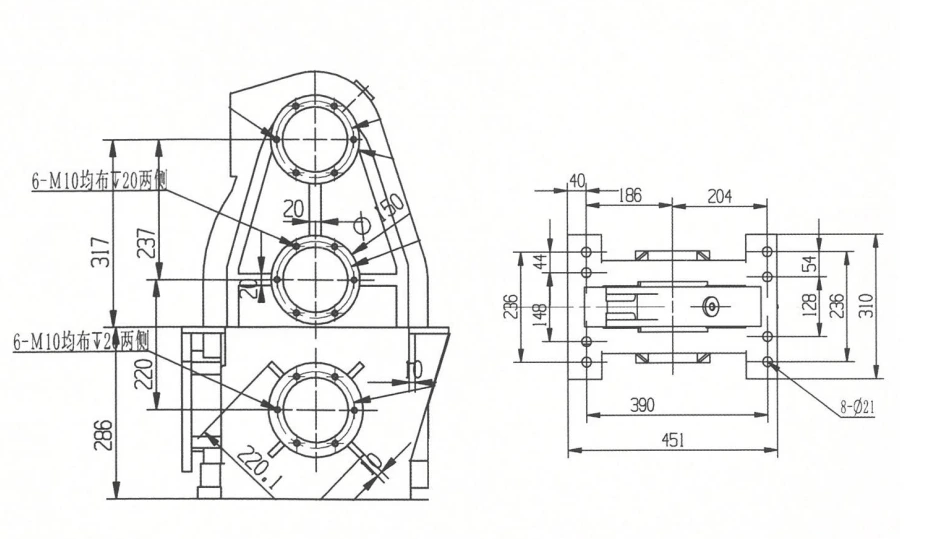

M9 medium-height mounting dimension drawing; linear dimensions in mm — M9 medium-height
Linear dimensions: mmOpen full-size drawing ↗
