Large Tiller Gearboxes

TRANSMISSION COMPONENTS

The M10-581 housing assembly is shown. M10-520 and M12-661 alternatives have different housing and mounting layouts; use the matching model drawing below.

Shown model: M10-581
Related models: M10-520 / M12-661
Application: Rotary tiller drivetrain

Enquire about this product ↗

SERIES CONFIGURATIONS

Compare the available configurations.

Browse 6 product configurations. Select an image, name or More to view the model and matching details.

Find a model

GB03-01

M10-581 Housing

M10 series, 581 configuration

More ↗

GB03-02

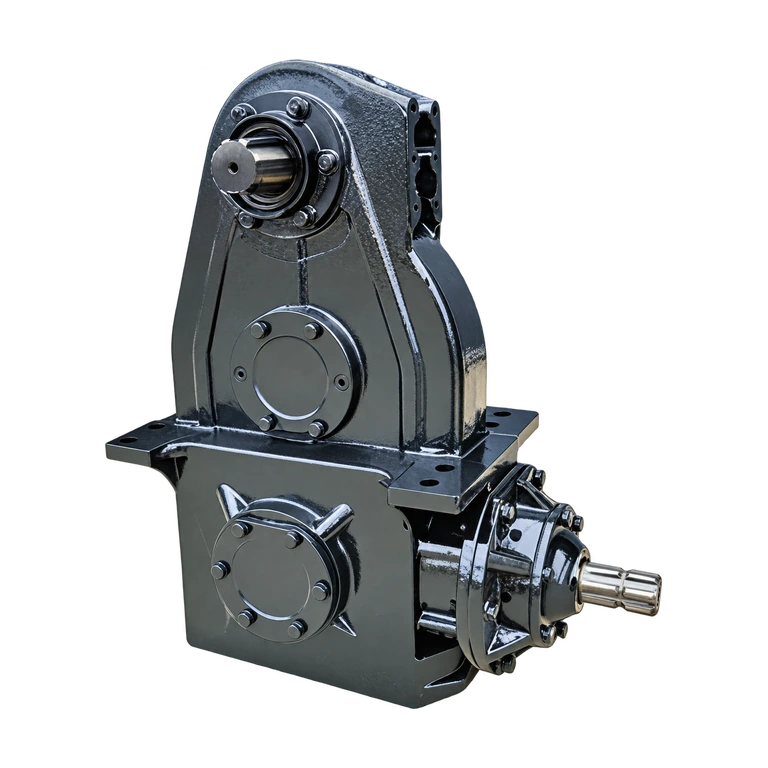

M10-520 Housing

M10 series, 520 configuration

More ↗

GB03-03

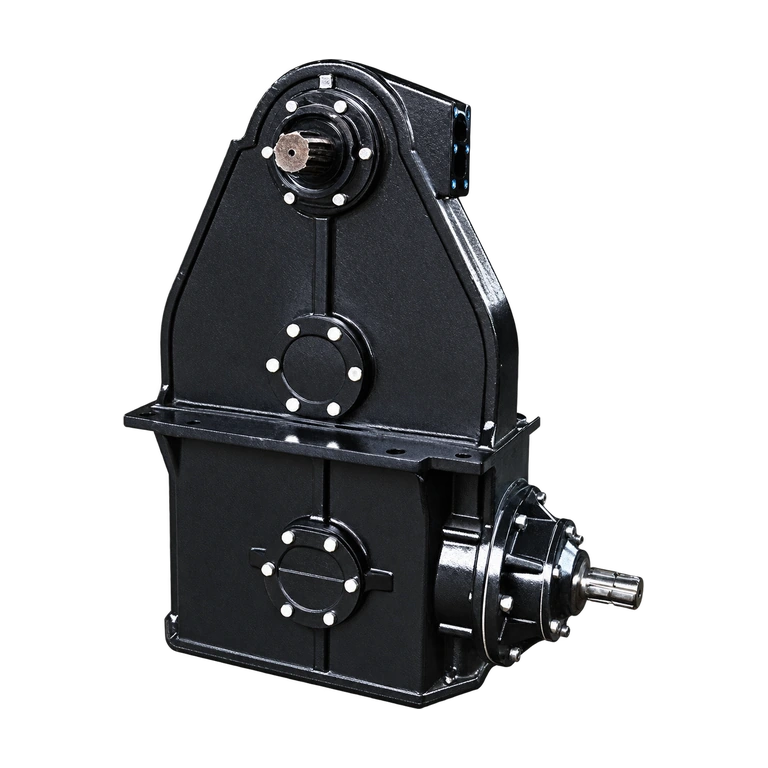

M10-610 Housing

M10 series, 610 configuration

More ↗

GB03-04

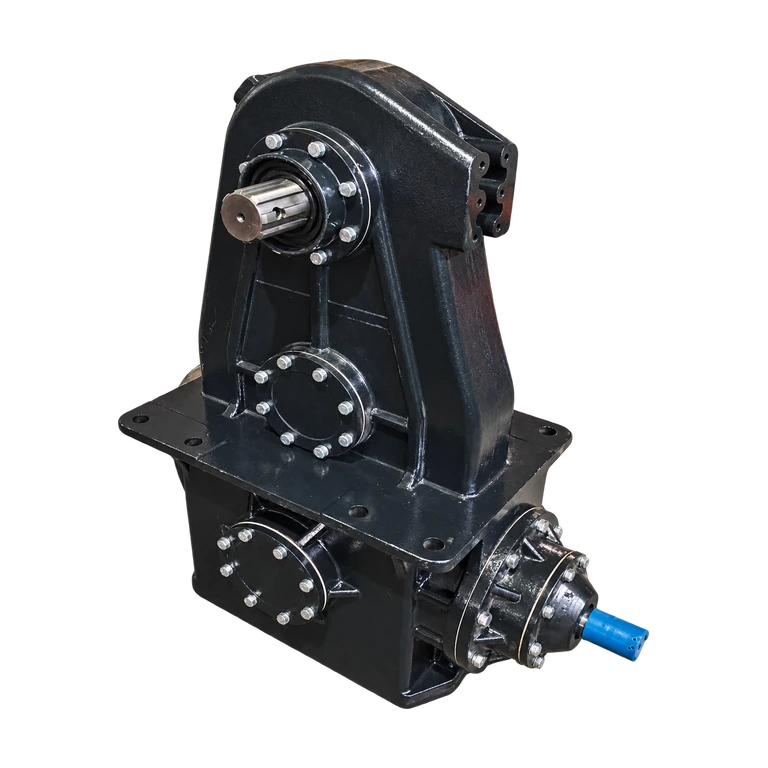

M12-661 Housing

M12 series, 661 configuration

More ↗

GB03-05

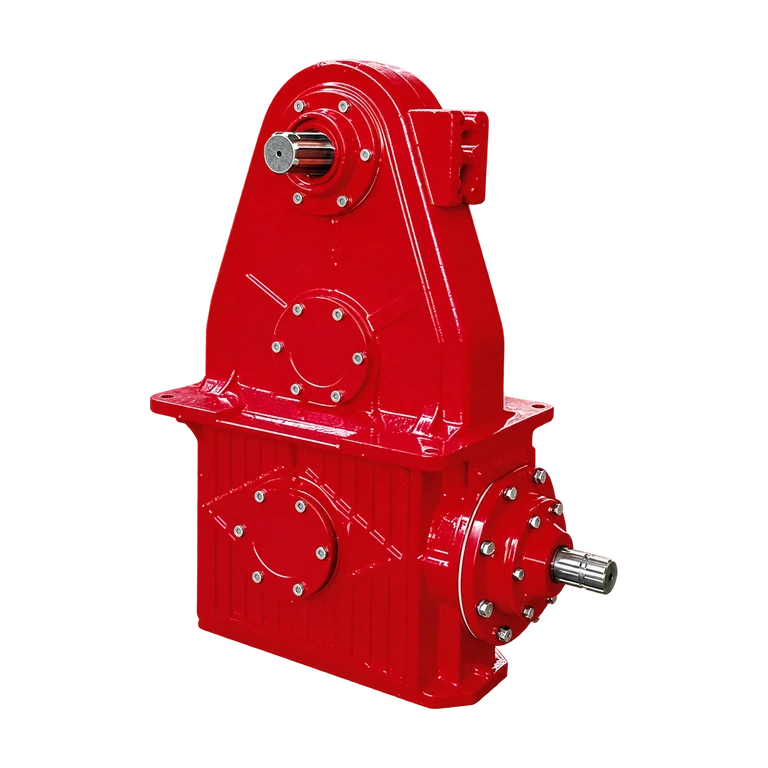

M11 Housing

Tooth pairs: 13/27 · 13/31 · 14/26 · 15/25

More ↗

GB03-06

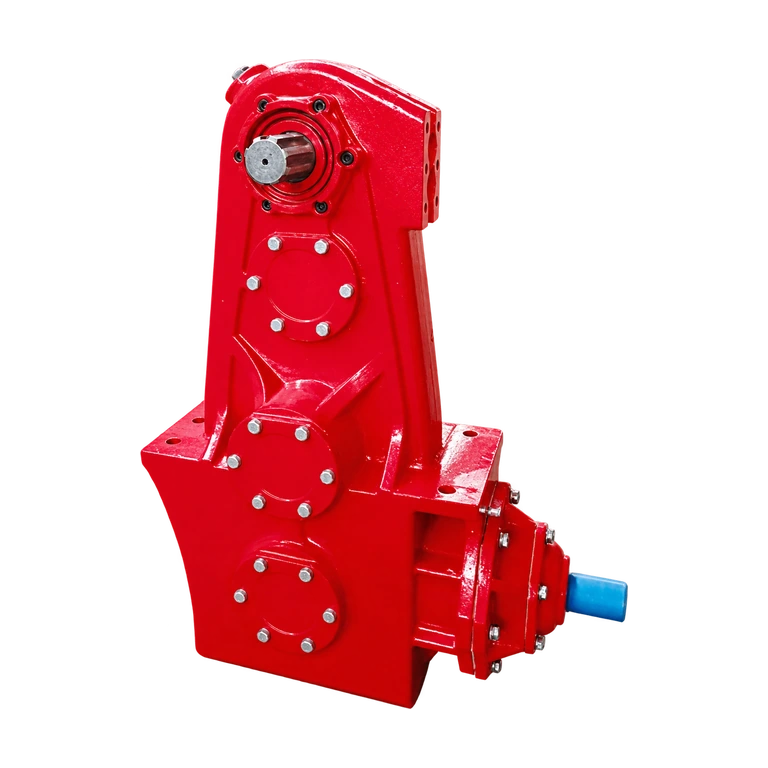

M10 Alternative Housing

Alternative M10 housing layout

More ↗

SELECTION SUMMARY

Configuration selection.

Model / configuration	Product / layout	Tooth combinations / selection	Enquiry
M10-581	Housing assembly	10/25 · 10/27 · 11/28 · 11/29 · 13/27 · 13/28 · 13/30 · 14/26 · 15/20 · 15/22 · 15/23 · 15/24 · 15/25	Enquire ↗
M10-520	Alternative housing layout	10/25 · 10/27 · 11/28 · 11/29 · 13/27 · 13/28 · 13/30 · 14/26 · 15/20 · 15/22 · 15/23 · 15/24 · 15/25	Enquire ↗
M12-661	Larger housing configuration	13/28 · 13/30 · 14/26 · 15/25	Enquire ↗

Match the model, shaft arrangement, mounting pattern and gear configuration to your machine.

DIMENSION DRAWINGS

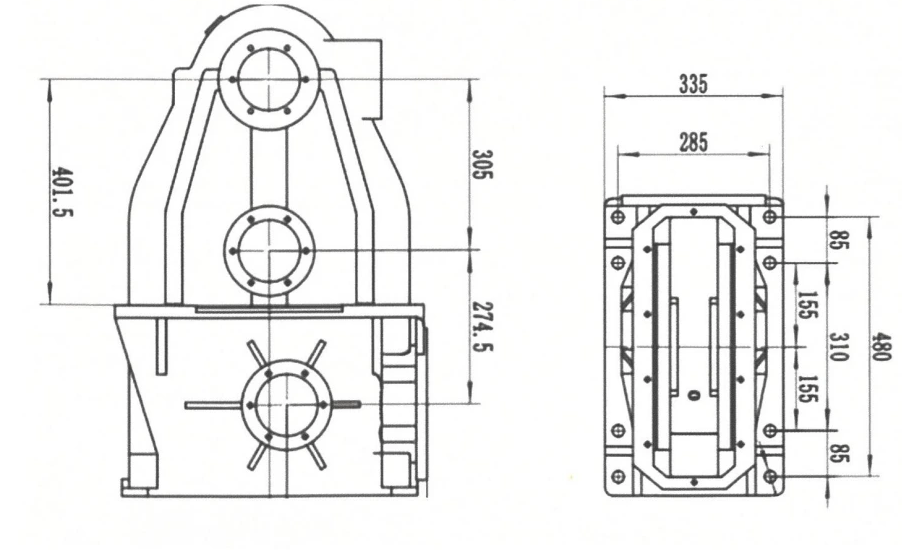

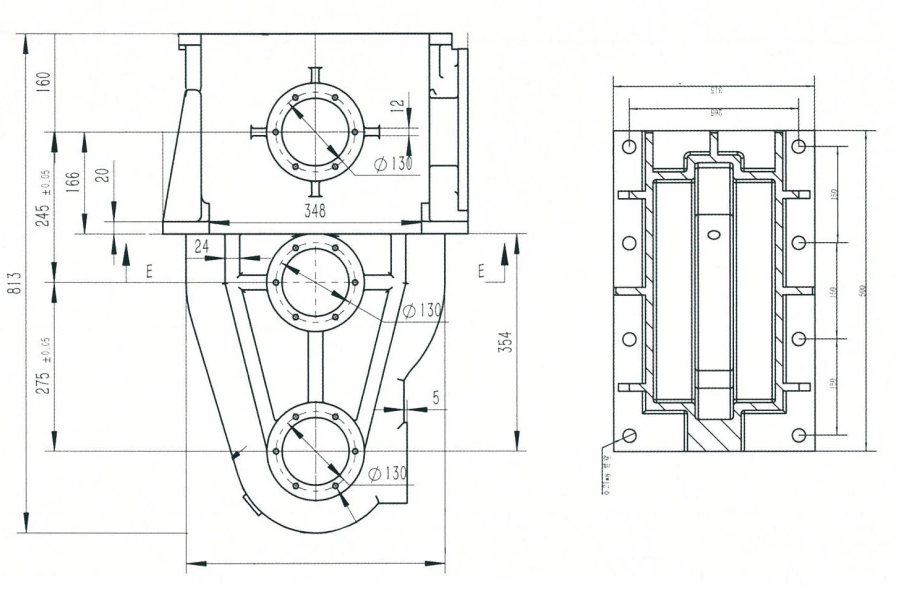

Mounting dimensions mm

All linear dimensions are in millimetres (mm). Ø indicates diameter; angles are in degrees (°). Thread designations, tooth counts and spline counts are not lengths.
