Dual-output Tiller Gearboxes

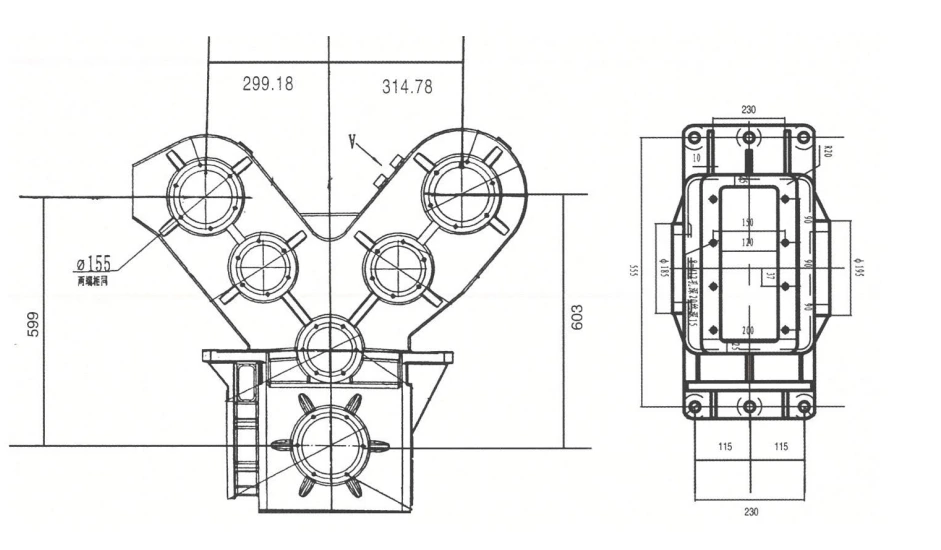

The M10 dual-output housing assembly is shown. M9 and M8 branching housing options are grouped below, each with a separate dimension drawing.

Shown model: M10 dual-output
Related models: M9 dual-output / M8 fork-type
Gear tooth combinations, shown model: 13/27 · 14/26 · 15/25 · 16/25

Enquire about this product ↗

SERIES CONFIGURATIONS

Compare the available configurations.

Browse 6 product configurations. Select an image, name or More to view the model and matching details.

Find a model

GB04-01

M10 Dual-output Housing

Tooth pairs: 13/27 · 14/26 · 15/25 · 16/25

More ↗

GB04-02

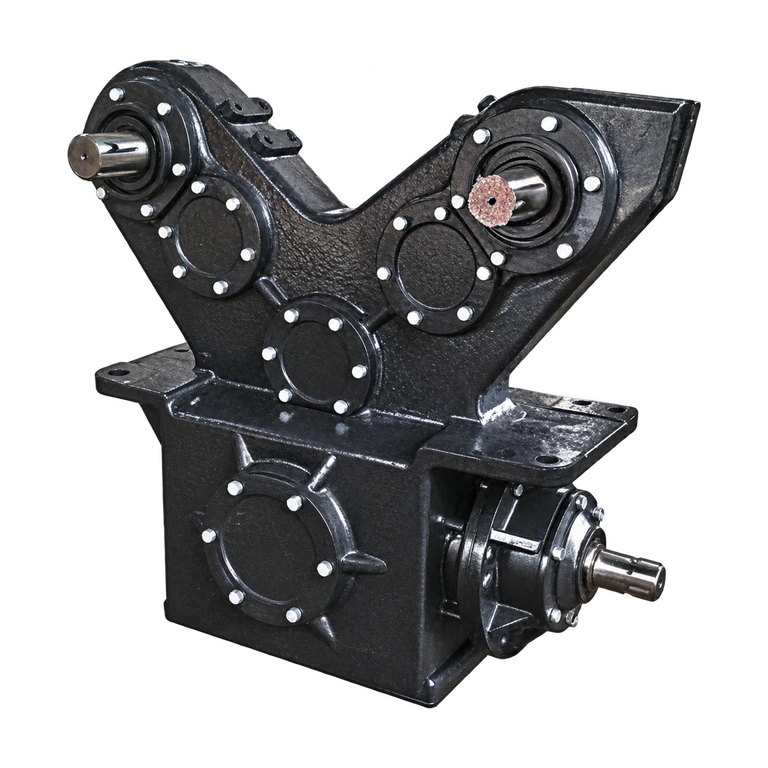

M9 Compact Fork Housing

Twin-drive branching housing

More ↗

GB04-03

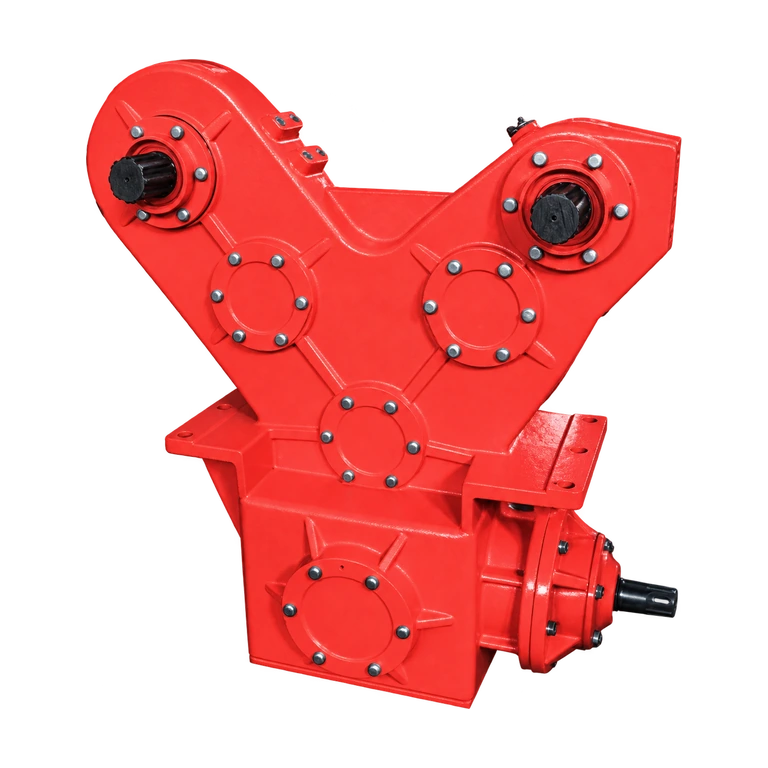

M10 Front/Rear Drive Housing

Tooth pairs: 13/27 · 14/26 · 15/25 · 16/25

More ↗

GB04-04

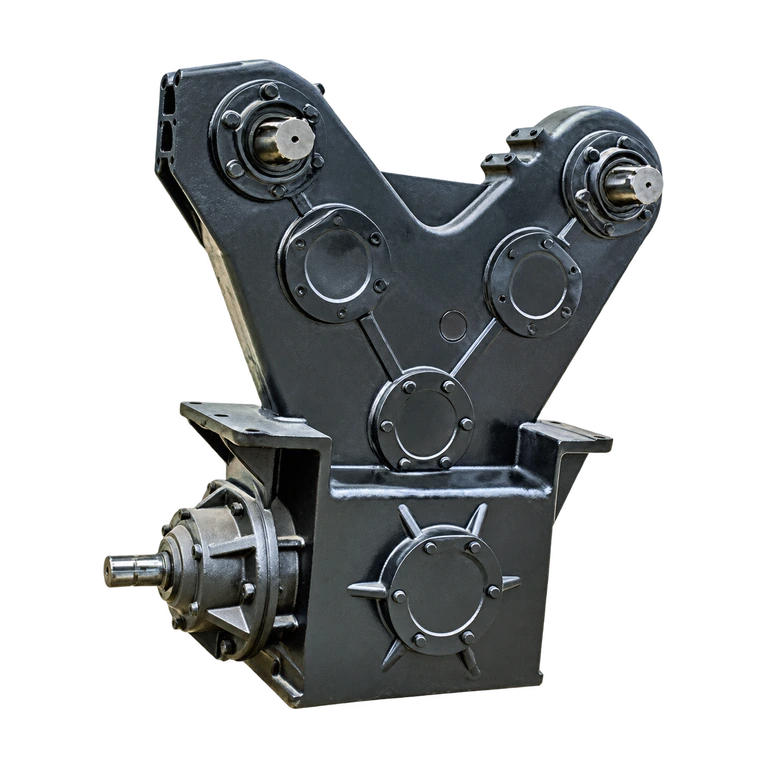

M9 Dual-output Housing

Twin-drive housing configuration

More ↗

GB04-05

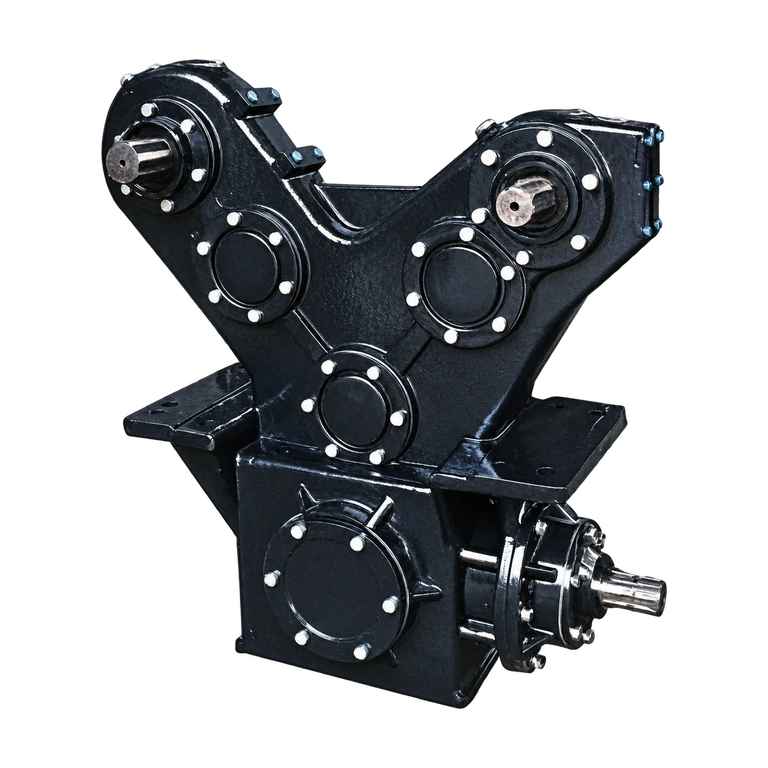

M8 Fork-type Housing

Tooth pairs: 13/28 · 14/26 · 15/22

More ↗

GB04-06

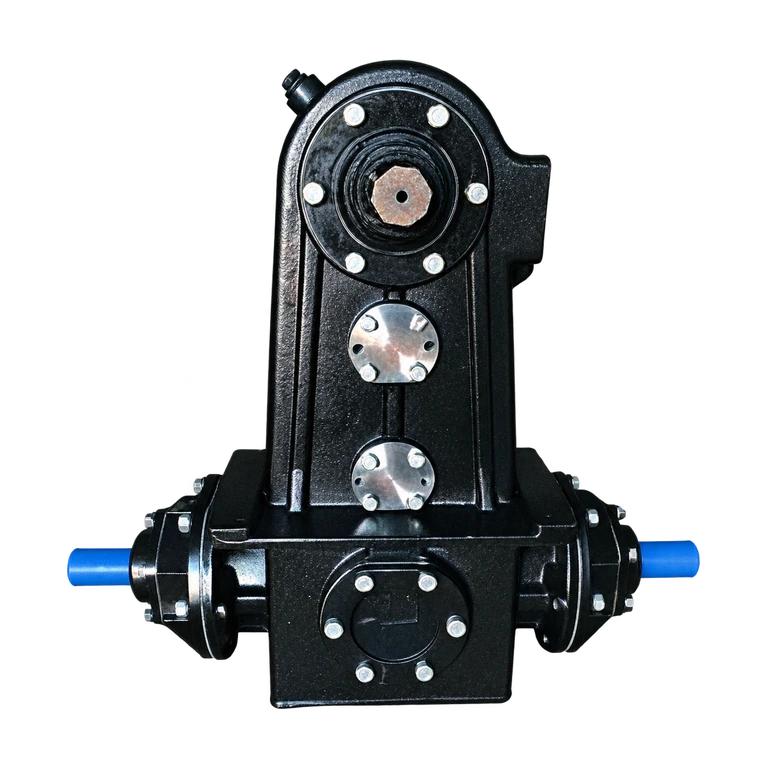

140 Dual-ended Housing

Opposed output shafts

More ↗

SELECTION SUMMARY

Configuration selection.

Model / configuration	Product / layout	Tooth combinations / selection	Enquiry
M10	Dual-output housing	13/27 · 14/26 · 15/25 · 16/25	Enquire ↗
M9	Dual-output housing	10/25 · 10/27 · 11/28 · 11/29 · 13/27 · 13/28 · 13/30 · 14/26 · 15/20 · 15/22 · 15/23 · 15/24 · 15/25	Enquire ↗
M8	Fork-type housing	13/28 · 14/26 · 15/22	Enquire ↗

Match the model, shaft arrangement, mounting pattern and gear configuration to your machine.

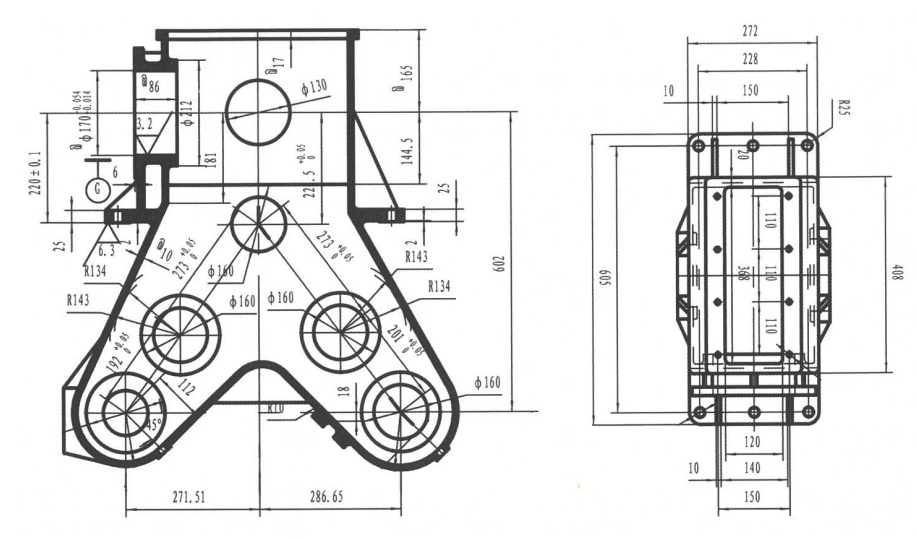

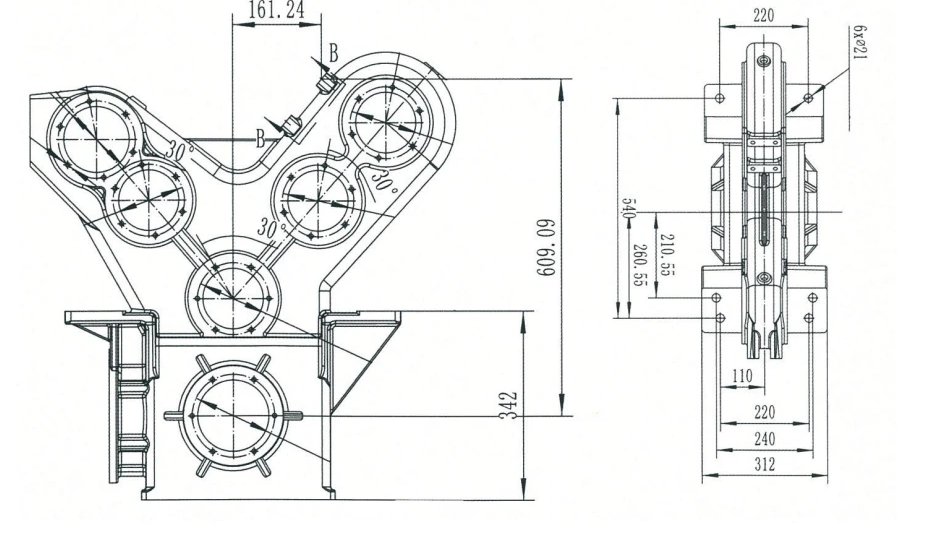

DIMENSION DRAWINGS

Mounting dimensions mm

All linear dimensions are in millimetres (mm). Ø indicates diameter; angles are in degrees (°). Thread designations, tooth counts and spline counts are not lengths.
