TRANSMISSION COMPONENTS
Compact Tiller Gearboxes

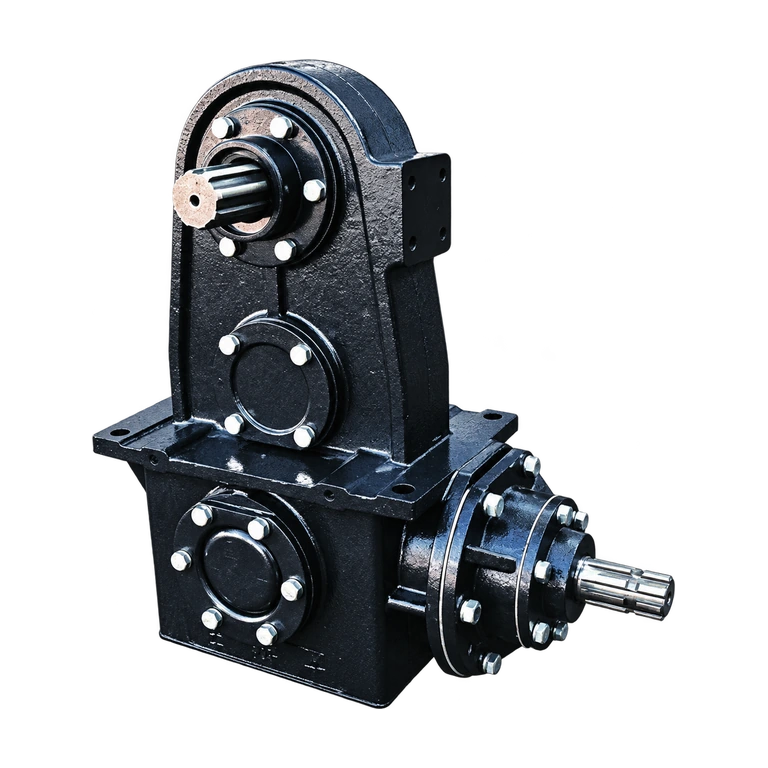

Model 140 housing assembly for a compact rotary tiller drivetrain. Compare the mounting layout and shaft centres in the dimension drawing before selecting a configuration.
- Shown model
- 140
- Application
- Rotary tiller drivetrain
- Gear tooth combinations
- 15 / 24 · 16 / 24 · 13 / 26
SERIES CONFIGURATIONS
Compare the available configurations.
Browse 4 product configurations. Select an image, name or More to view the model and matching details.
No matching configurations. Try another model or tooth count.
Match the model, shaft interfaces and mounting layout to your machine. Supply linear dimensions in mm when requesting a matching part.
Enquire about this configuration ↗Mounting dimensions

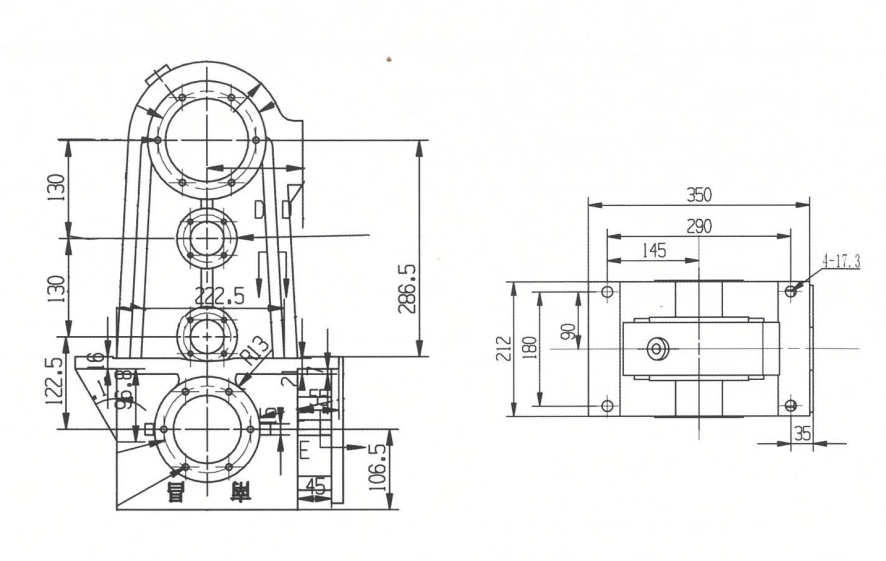

mmOpen full-size drawing ↗DIMENSION DRAWINGS
Mounting dimensions mm
All linear dimensions are in millimetres (mm). Ø indicates diameter; angles are in degrees (°). Thread designations, tooth counts and spline counts are not lengths.
140
Linear dimensions: mmOpen full-size drawing ↗
