TRANSMISSION COMPONENTS
Tiller Gears & Gear Sets
M10X rotary tiller bevel gear set shown, with related M11 and M12 configurations grouped below. Select the tooth pairing for the corresponding gearbox model.
- Shown model
- M10X
- Shown tooth pairings
- 13 / 27 · 14 / 26 · 15 / 25

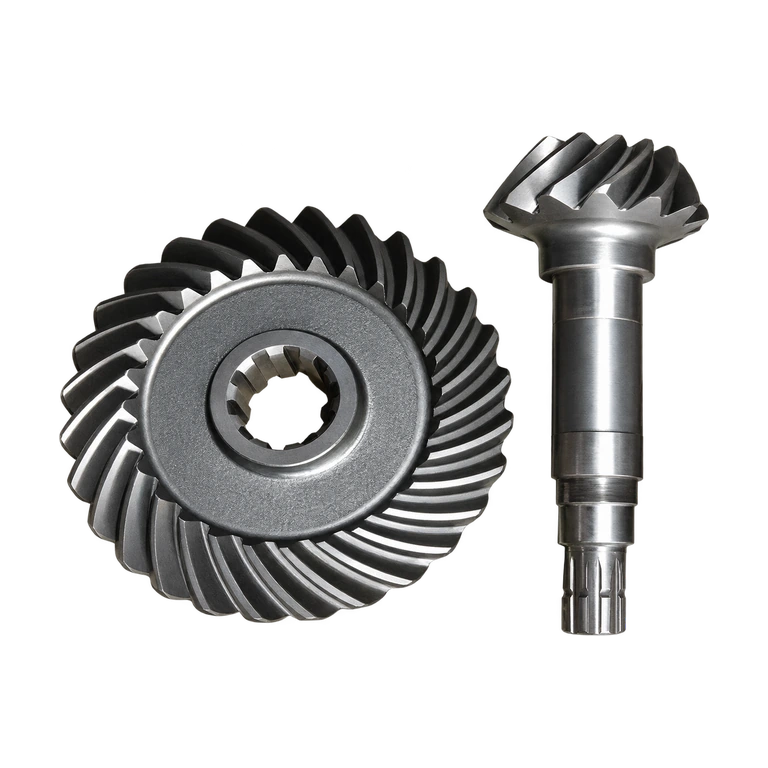

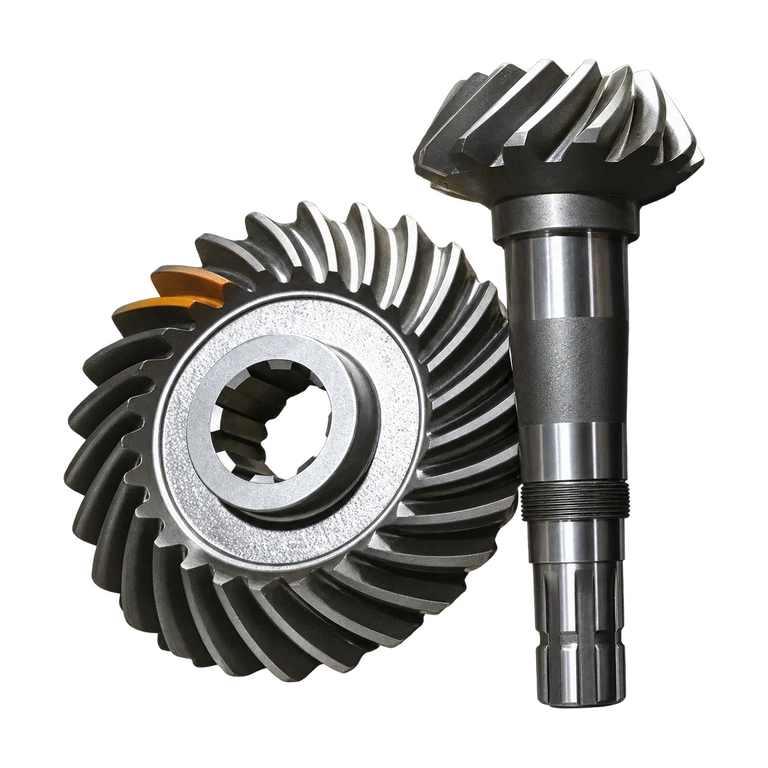

- Related models
- M11 / M12
SERIES CONFIGURATIONS
Compare the available configurations.
Browse 11 product configurations. Select an image, name or More to view the model and matching details.
No matching configurations. Try another model or tooth count.
Match the model, shaft interfaces and mounting layout to your machine. Supply linear dimensions in mm when requesting a matching part.
Enquire about this configuration ↗
