GATE VALVES
Resilient Seated Gate Valve
Resilient seated gate valve with flanged connections and handwheel operation.
- Size range
- DN50–DN600
- Working pressure
- PN10–PN16
- Working temperature
- 0–100°C
PRODUCT CONFIGURATION
Materials & components
Select component materials to suit your medium and operating conditions.
| Component | Material options |
|---|---|
| Body | GGG50 |
| Disc | NBR / EPDM |
| Stem nut | Brass GGG50 With |
| Stem | Stainless steel |
| Bonnet | GGG50 |
| Handwheel | GGG50 |
| Dust ring | NBR / EPDM |
| Brass nut | Brass |
| Sealing ring | PTFE |
| O-ring | NBR / EPDM |
| Locting ring | Brass |
TECHNICAL REFERENCE
Dimensions & drawing

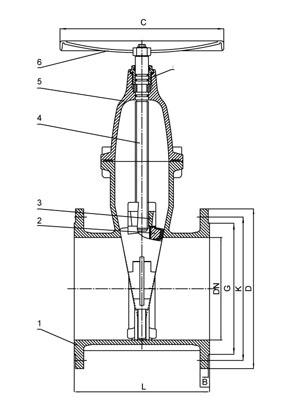

Dimensional drawing

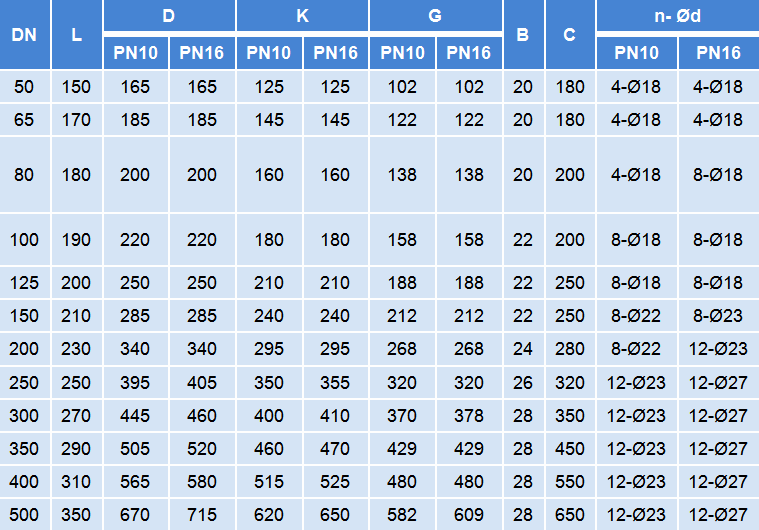

Dimensions
